What does the plunger do?

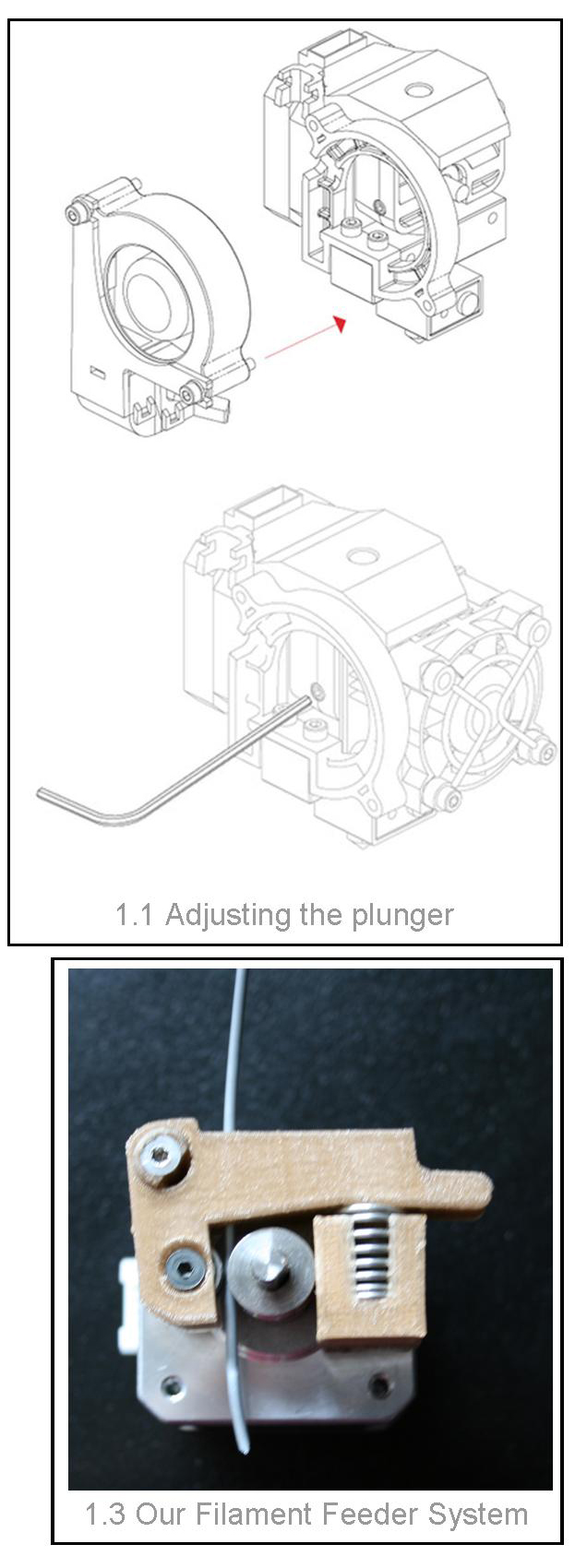

The plunger is designed to apply pressure against the filament to hold it tightly against the teeth of the Drive Wheel, which pulls the filament down into the barrel for printing. There is a grub that you can access from behind the filament fan to tighten the plunger (see page 54 of your Makerbot Machine Manual)
What goes wrong?

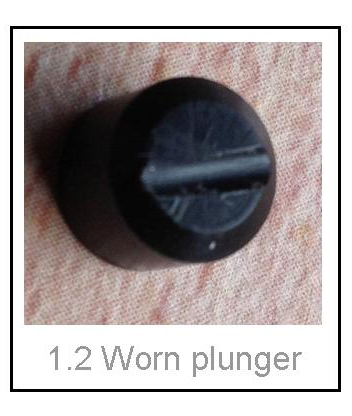

In most cases the adjusted plunger will only require maintenance every 10 or so hours. However filament changes can accelerate this need. In addition, dome users have found that the grub screw can shake loose with use. Lastly, the plunger can become worn and as a result stop functioning.
What does plunger fail look like?

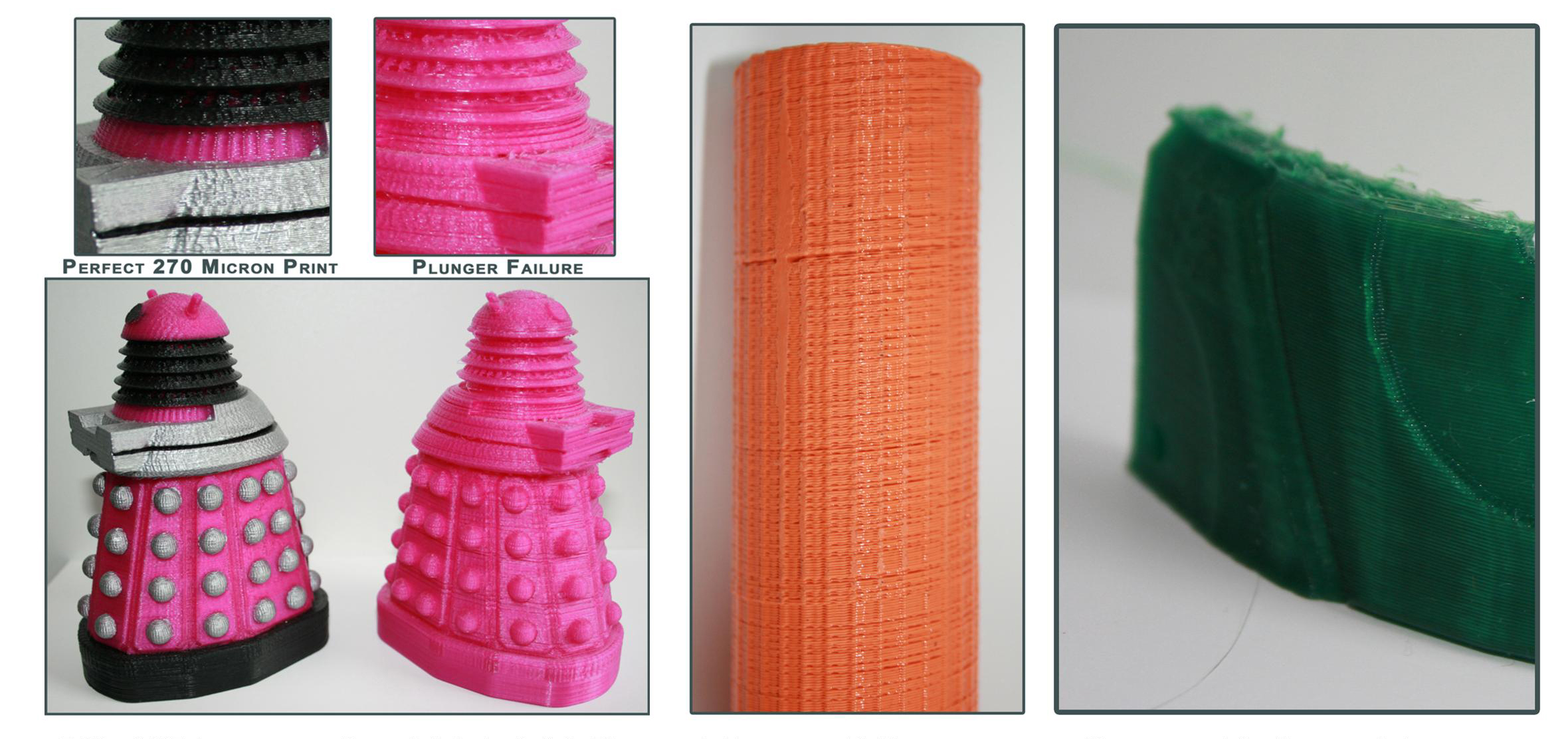

A failing plunger commonly cause the following symptoms :
· Print starts well but then just stops. The last layers tend to look fluffy.
· Prints look stripy and have gaps in them
There are some photos below for your reference.
How do you fix it?
Short term
If the plunger is worn and new plunger will get you going again. We supply these free to our customers. Let us know if you need one.
If it is not worn, simply tightening the plunger will fix the issue. We find doing the fine adjustment with the machine on and running load allows you to see when the filament flow is at the highest rate—the sweet spot ;)
Longer Term
We highly recommend upgrading the filament feeder system to a constant pressure system, like the one we have available on our site and pictured right. This system is also recommended by Makerbot.
BilbyCNC hopes you found this helpful. Please visit support.bilbycnc.com.au if you need further assistance
